Product Overview

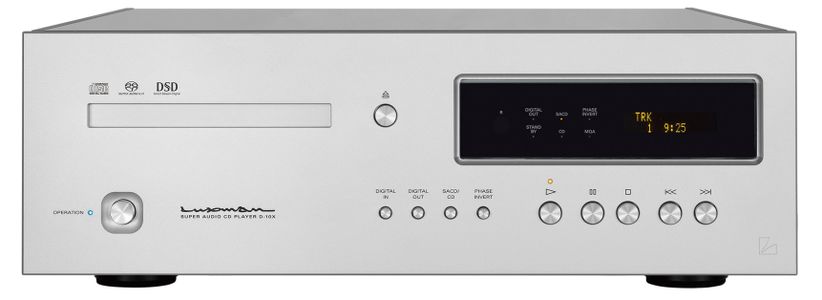

Welcome to the ultimate expression of musicality. Luxman's flagship SACD/CD player, the D-10X builds on the brilliant heritage of our acclaimed D-08u, adding more playback capabilities, the latest conversion technology, a robustly reinforced mechanism and a refined analog output stage. Introducing LxDTM-i – the LUXMAN original Disc Transport Mechanism (improved). Here is the world premiere of the ROHM Semiconductor MUS-IC™ BD34301EKV digital-to-analog converter (as of May 2020). Introducing ODNF-u – Only Distortion Negative Feedback (ultimate) – in a fully balanced output amplifier. Well-grounded in fundamental principles and endowed with the most advanced mechanical, digital and analog technology, the LUXMAN D-10X opens the curtain on the ultimate soundstage.
Specifications:
Supported discs SACD, CD (CD-R, CD-RW, MQA-CD) Supported sampling frequencies USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit) Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit) Analog output voltage / impedance Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω For SACD / DSD : 1.3 V Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB) SACD : 5 Hz to 38 kHz (+0, -3.0 dB) USB : 5 Hz to 47 kHz (+0, -3.0 dB) Total harmonic distortion CD : 0.0018 %, SACD : 0.001 %, USB : 0.0015 % S/N ratio (IHF-A) CD : 125 dB, SACD : 121 dB, USB : 125 dB D/A converter ROHM BD34301EKV (monaural mode) x 2 Power supply 230 V～(50 Hz) / 115 V～ (60 Hz) Power consumption 48W Dimensions 440(W) x 154(H) x 418(D) mm front side knob of 2 mm and rear side terminal of 13 mm included in depth Net weight 22.4 kg Accessories Remote control (RD-29), Power cable
