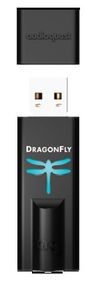

AudioQuest® DragonFly USB Digital Audio Converter

Model #: DragonFly

At a Glance

WarningProposition 65 Warning for California Residents
AudioQuest® DragonFly USB Digital Audio Converter

General Specs

Product Weight (lbs.)1

Specifications

Sample Rates Supported, LED indicator color codes44.1kHz (Green), 48kHz (Blue), 88.2kHz (Amber), 96kHz (Magenta)
Output Voltage2V RMS
Minimum Driven Impedance (Headphones, Electronic Input)12 ohms
Maximum Headphone Driver Output Power125mW @ 32 Ohms

Analog Audio – Frequency Response

DC - 22 kHz(44.1kHz Sample Rate)
DC - 24 kHz(48kHz Sample Rate)
DC - 44 kHz(88.2kHz Sample Rate)
DC - 48 kHz(96kHz Sample Rate)

AudioQuest® DragonFly USB Digital Audio Converter

Model #: DragonFly
20398
AudioQuest

Request a Quote

At a Glance


Get to know this product.

64-position (computer-controlled) analog volume control

Asynchronous Class 1 USB data transfer using the Streamlength™ protocol

Direct-coupled circuitry from the ESS Sabre™ DAC chip through the analog volume control and analog output section

Isolated Dual Master Clocks enable all sample rates to be ideally processed without any conversion or rounding errors

Plays All Music Files: MP3 to 24-bit/192kHz

Drives headphones directly

Variable output drives powered speakers or power amp

Fixed output feeds preamp or AV receiver

Useful Documents
Specifications

General Specs

Product Weight (lbs.)1

Specifications

Sample Rates Supported, LED indicator color codes:44.1kHz (Green), 48kHz (Blue), 88.2kHz (Amber), 96kHz (Magenta)
Output Voltage:2V RMS
Minimum Driven Impedance (Headphones, Electronic Input):12 ohms
Maximum Headphone Driver Output Power:125mW @ 32 Ohms

Analog Audio – Frequency Response

DC - 22 kHz(44.1kHz Sample Rate)
DC - 24 kHz(48kHz Sample Rate)
DC - 44 kHz(88.2kHz Sample Rate)
DC - 48 kHz(96kHz Sample Rate)
