Product Overview
Drive and Detail for all Music…
The subtleties of voices were rendered with a lushness and richness that were simply unattainable previously. Full development of what has become the Momentum HD Preamplifier started immediately. Ultimately, the HD moniker was selected as it best describes the improvements achieved in the new model. The new HD signifies the high dynamic and high definition improvements that have been accomplished in this substantial upgrade. Beyond the input stage, the new Momentum HD Preamplifier incorporates advancements in the power supply, audio circuitry, and control sections. Advancements in the audio circuitry, power supply, and control sections are incorporated in the new Momentum HD Preamplifier.
Balanced Circuits for Maximum Bandwidth…
Like the Momentum amplifiers, the Momentum HD Preamplifier uses a complementary balanced circuit topology for maximum bandwidth and low noise. Its audio circuitry is fully discrete, with no op amps or integrated circuits. A Zero-feedback design assures the most musical sound quality. Volume adjustment is made through a resistor network governed by an optical controller—the cleanest, most transparent possible method of controlling volume.
Detail and Richness Throughout the Musical Range…
A completely new discrete differential FET input stage features two current sources per leg and an input impedance greater than 1MOhm. This ultra-high input impedance isolates the input stage and thus the entire audio signal path from external variables. This new input stage started as an engineering exercise that delivered exceptional results. Fine-grain detail and delicate musical shadings are rendered with a lushness and richness that were simply unattainable previously.
Striking Dynamics…
Housed in a separate chassis for maximum isolation, the Momentum HD main power transformer is 33% larger as compared to the original Momentum Preamplifier. A unique winding technology, first employed in the Momentum M400 amplifier, delivers greater power output from the same footprint. Separate supplies power audio and control circuitry, so the control circuits are completely isolated from the audio circuits. Internal circuitry filters RF noise from the AC powerline and compensates for asymmetric power waveforms and DC on the main power line. Taking advantage of the increased power supply capability, the output stages are now operating at a 36% percent higher voltage. The increased output voltage has opened up the dynamics on both the micro and macro level with contrasts striking in their speed.
Advanced Remote Control…

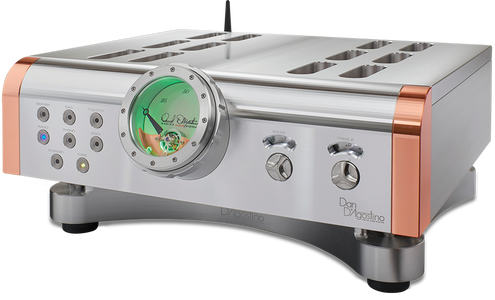

Also new is the Bluetooth technology featured in the included remote control. The Bluetooth backbone extends the range of the remote by a factor of five and eliminates line of sight limitations that are inherent in IR remote controls. Newly designed tone and volume control circuitry increases range and precision in both circuits. The styling of the Momentum HD Preamplifier perfectly complements the Momentum M400 and S250 amplifiers, with copper accents matching the amplifiers’ unique copper heat sinks. The meter on the front face of the preamplifier indicates volume setting, polarity, and mute status. Front selector buttons illuminate indicating which input is active. Existing Momentum Preamplifier owners will be able to upgrade to the new Momentum HD Preamplifier electronics enhancements.
Technical Specifications:
Frequency Response 0.1 Hz to 1 MHz, -1 dB 20Hz to 20 kHz, ±0 dB Signal-to-Noise Ratio -105 dB, unweighted Gain +13 dB or +19 dB, switchable Finish Silver Black Custom Finishes Available Upon Request Input Impedance 1 MΩ Output Power 10Ω Power Consumption <1 watt Distortion (Full output) <0.006%, 20 Hz to 20 kHz Inputs 6 balanced XLR stereo Outputs 2 balanced XLR stereo Manual DAgostino Momentum HD Preamp USer Manual.pdf (4.48 MB) Dimensions (Preamp) 4.3 x 18 x 12 inches / 10.8 x 45 x 30 cm Dimensions (Power Supply/Base) 3 x 11 x 8 inches / 7.5 x 27.5 x 20 cm
