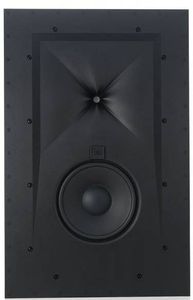

JBL Synthesis® SCL-4 In-Wall/In-Ceiling Loudspeaker with magnetic grille and high-performance passive network
Connector Type | Dual Gold-Plated Five-Way Binding Posts |
---|
Driver Component Size | 1" |
---|
Mount Depth | 3.84 |
---|
Crossover Type | 1.3 kHz |
---|
Product Weight (lbs.) | 27.6 |
---|---|
MPN | SCL-4 |
Frequency Response | 45Hz – 33kHz |
Color Finish Name | White |
Color | White |
Impedance | 6 ohms |
Sensitivity | 91 |
Depth (in.) | 4 |
Height (in.) | 25.35 |
Width (in.) | 16.45 |
Woofer Size | 7" |
The JBL brand has become synonymous with the cinema experience. The SCL-4 continues this legacy. The two-way SCL in-wall loudspeakers are the first flush-mount compression driver loudspeakers using JBL Professional technology. The 7" cast-frame aluminum-cone woofer is ideal for in-wall or ceiling mounts. Utilizing the D2-derived 1-inch / 25mm annular ring Teonex® diaphragm compression driver with advanced HDI geometry horn, the SCL-4 provides extraordinary performance in a very small package.
7” (180mm) cast-frame, advanced aluminum matrix cone woofer with large ferrite low-distortion motor structure
D2-derived 1" (25mm) 2409H annular ring diaphragm Teonex® compression driver
Patented High-Definition Imaging (HDI™) technology provides elevated performance in combination with patented D2-Series compression driver.
Design can be installed in any orientation, for maximum installation flexibility
Ideal for LCR or surround channel use
Patent Pending extended range L-Bracket mounting system
Low resonance, well-damped MDF wood rear enclosure
High-performance passive network utilizing all air-core inductors, polypropylene capacitors
Zero-bezel, magnetically-attached grille
Dual binding post inputs for bi-wire or bi-amplified connections
Connector Type: | Dual Gold-Plated Five-Way Binding Posts |
Driver Component Size: | 1" |
Mount Depth: | 3.84 |
Crossover Type: | 1.3 kHz |
Product Weight (lbs.) | 27.6 |
MPN | SCL-4 |
Frequency Response | 45Hz – 33kHz |
Color Finish Name | White |
Color | White |
Impedance | 6 ohms |
Sensitivity | 91 |
Depth (in.) | 4 |
Height (in.) | 25.35 |
Width (in.) | 16.45 |
Woofer Size | 7" |
