Product Dimensions 5.2"h x 17.3"w x 16.1"d

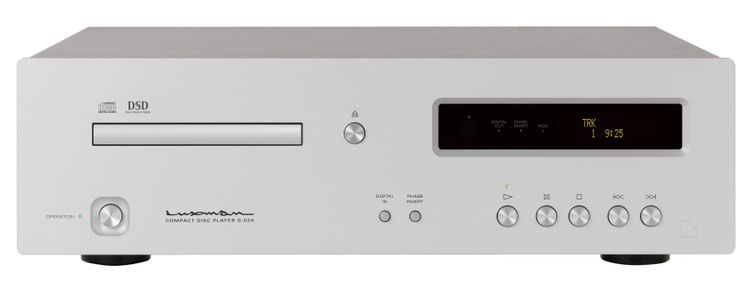

CD / DIGITAL PLAYER D-03X Timeless design meets cutting edge technology - 2x32 Bit, USB DSD 11.220MHz 1BitRead More
Now a single digital player embodies the most advanced digital decoding along with the most enduring approaches to design and engineering. LUXMAN’s new D-03X combines traditional red-book CD playback with an advanced hi-res DAC circuit featuring MQA full decoding. Of crucial importance, the D-03X inherits the philosophy and experience of successive LUXMAN digital players and remains true to timeless LUXMAN design principles, including rugged chassis, oversized power supply and meticulous circuit selection. The result: reproduction of effortless musicality.
Spec Supported discs CD (CD-R, CD-RW, MQA-CD) Supported sampling frequencies USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz (1-bit) Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit) Analog output voltage / impedance Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω, DSD : 1.7 V Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB) Coaxial / Optical : 5 Hz to 47 kHz (+0, -3.0 dB) USB : 5 Hz to 47 kHz (+0, -3.0 dB) Total harmonic distortion CD : 0.003 %, Coaxial / Optical : 0.002 %, USB : 0.002 % S/N ratio (IHF-A) CD : 101 dB, Coaxial / Optical : 114 dB, USB : 113 dB D/A converter Texas Instruments PCM1795 (monaural mode) x 2 Power supply 230 V~(50 Hz) / 115 V~ (60 Hz) Power consumption 18W Dimensions 440(W) x 133(H) x 410(D) mm front side knob of 2 mm and rear side terminal of 8 mm included in depth Net weight 13.2 kg Accessories Remote control (RD-28), Power cable
General Specs | |
Product Weight (lbs.) | 29.6 |
Depth (in.) | 16.1 |
Width (in.) | 17.3 |
Height (in.) | 5.2 |
Manufacturer Warranty | 3-Years Parts and Labor |
Color Finish Name | Silver |
