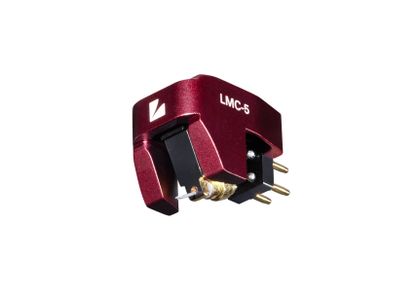

Luxman LMC-5 Moving Coil Phono Cartridge

Product Overview

Reliable groove reading, accurately articulating the most delicate music signals pressed on vinyl

LUXMAN’s latest phono cartridge is the LMC-5. After 40 years’ experience, our aim was to design it to have sensitivity to all the musical information pressed on a record. The MC type power generation engine features a cross-mounted iron core with a compact magnetic system to improve efficiency. For the vibration detection system, we selected a combination of an aluminum cantilever and a SHIBATA stylus, which boasts excellent tracing ability. In addition, the unique housing structure was achieved by repeated prototyping and fine tuning. We have developed this cartridge with confidence for all those who love vinyl and value its musicality.

Specs:

Type MC (MOVING COIL) Internal impedance 4.7Ω (1kHz) Tracking force 2.1 to 2.3g (2.2g as standard) Output voltage 0.4mV (1kHz, 3.54cm / sec.) Frequency response 10Hz to 35kHz Channel separation / balance 28dB (1kHz) / 0.5dB (1kHz) Recommended load impedance (when head amplifier is connected) 40Ω or more Recommended load impedance (When step-up transformer is connected) 2.5 to 10Ω Dynamic compliance 8 x 10-6cm / dyne (100Hz) Stylus Solid diamond / SHIBATA stylus Cantilever Φ0.5mm aluminum Vertical tracking angle 25° Magnet Samarium-cobalt magnet BH20 Coil 30μm UEW Material of magnetic circuit Pure iron Terminals Φ1.2mm, White (L+) , Blue (L−) , Red (R+) , Green (R-) Body Aluminum A6063 Dimensions, Threaded holes 17.0 (W) x 18.3 (H) x 21.3 (D)mm (excluding terminals), M2.6mm x 2 Weight 8.5g Accessories Manual, Washer x 2, Screws M2.6 (5mm x 2, 8mm x 2, 10mm x 2), Hex wrench and stylus cover
