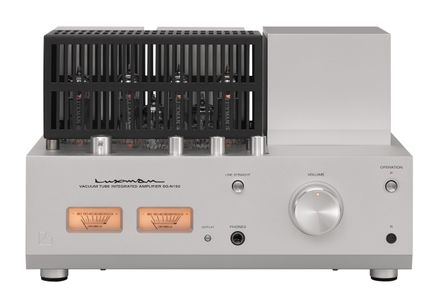

Luxman SQ-N150 - NeoClassico Integrated Amplifier

Product Overview

In the 1960s, when the audio industry moved en masse into transistor amplifiers, LUXMAN stood apart. We recognized the ineffable beauty of vacuum tube audio, and we’ve continued to build tube components without interruption. Part of LUXMAN’s NeoClassico II Series, the SQ-N150 is the latest heir to that proud tradition, delivering music reproduction of exceptional warmth and clarity.

Specifications:

Rated output 10W+10W(6Ω) Input sensitivity/ input impedance PHONO (MM): 3.0mV/47kΩ PHONO (MC): 0.33mV/100Ω LINE: 180mV/47kΩ Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 80kHz (within -3.0dB) Total harmonic distortion 1% or less (1kHz, 10W/6Ω) S/N ratio (IHF-A) PHONO (MM): 84dB or more PHONO (MC): 64dB or more LINE: 95dB or more Circuit Driver :P-K split phase inversion circuit Output :Pentode power tubes Vacuum tubes ECC83×2, EL84×4 Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 98W External dimensions 297(W) x 188(H) x 251(D) mm 20mm front panel knob of and 21mm rear panel terminals are included in the depth measurement Net weight 12.4kg (main unit) Accessories Remote control (RA-25), Power cable
