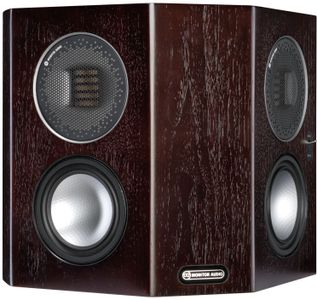

Monitor Audio Gold FX Pair of Walnut On-Wall Speakers

Model #: G5GFXWN

At a Glance

The Gold FX has been designed to immerse the listener in a compelling surround sound experience. Monitor Audio’s premium driver technology ensures an unforgettable audio performance.

WarningProposition 65 Warning for California Residents
Monitor Audio Gold FX Pair of Walnut On-Wall Speakers

General Specs

Frequency Response60 Hz – 50 kHz
Color Finish NameWalnut
Manufacturer Warranty5 Year
RMS Power Handling (Watts)100
ColorBrown
Impedance4 Ohms
Maximum Power Handling (Watts)100
Number of Speakers2
Sensitivity88
Speaker TypeOn-Wall Speakers

Additional Specifications

System Format2-way
Frequency Response (-6 dB)60 Hz – 50 kHz
Sensitivity (1W@1M)86 dB
Nominal Impedance4 Ohms
Minimum Impedance3.7 Ohms @ 3 kHz
Maximum SPL109 dBA (Pair)
Power Handling (RMS)100 W
Recommended Amplifier Requirements30 – 100 W
Bass AlignmentSealed cabinet
Crossover Frequency2.5 kHz
Drive Unit Complement2 x 4" C-CAM mid-range driver, 2 x MPD high-frequency transducer
External Dimensions (Including Grille and Terminals (H x W x D))270 x 341.8 x 160 mm (10 5/8 x 13 7/16 x 6 5/16")
Weight (each)6.2 kg (13 lb 10 oz)

Monitor Audio Gold FX Pair of Walnut On-Wall Speakers

Model #: G5GFXWN
275086
Model #: G5GFXWN
Monitor Audio
$99,999.00

Request a Quote

At a Glance

The Gold FX has been designed to immerse the listener in a compelling surround sound experience. Monitor Audio’s premium driver technology ensures an unforgettable audio performance.

Get to know this product.

Nothing enhances your home cinema experience like a dedicated surround sound speaker. A compact, discreet design, yet able to pack in two MPD high-frequency transducers and two 4" (100 mm) mid/bass C-CAM drivers, Gold FX can be flush-mounted and can function in either bi-pole or di-pole modes at the flick of switch.

Monitor Audio are masters of the effects speaker, and the Gold FX represents the state of the art.

Discreet design with flush wall placement – recessed terminations

Angled baffles for optimal dispersion

Sealed cabinet – for accurate performance when installed in restricted voids or close to a wall

Switchable di-pole/ bi-pole configuration – handed pairs

Dual MPD high frequency transducer – articulate, extended high frequencies, yet supremely smooth

Dual 4" Bass/Mid-range drivers with C-CAM cone technology

Pureflow silver-plated OFC copper internal cabling – highest quality transfer through the signal chain

Single-bolt-through driver technology – providing increased bracing strength, rigidity and driver/baffle de-coupling

High-quality crossovers with premium-grade polypropylene film capacitors used throughout

Bespoke magnetic grilles – clean visual styling, virtually acoustically transparent

Dedicated flexible bracket included for easy installation

This product is now available to use with home theatre design software, The CEDIA Designer.

Specifications

General Specs

Frequency Response60 Hz – 50 kHz
Color Finish NameWalnut
Manufacturer Warranty5 Year
RMS Power Handling (Watts)100
ColorBrown
Impedance4 Ohms
Maximum Power Handling (Watts)100
Number of Speakers2
Sensitivity88
Speaker TypeOn-Wall Speakers

Additional Specifications

System Format2-way
Frequency Response (-6 dB)60 Hz – 50 kHz
Sensitivity (1W@1M)86 dB
Nominal Impedance4 Ohms
Minimum Impedance3.7 Ohms @ 3 kHz
Maximum SPL109 dBA (Pair)
Power Handling (RMS)100 W
Recommended Amplifier Requirements30 – 100 W
Bass AlignmentSealed cabinet
Crossover Frequency2.5 kHz
Drive Unit Complement2 x 4" C-CAM mid-range driver, 2 x MPD high-frequency transducer
External Dimensions (Including Grille and Terminals (H x W x D))270 x 341.8 x 160 mm (10 5/8 x 13 7/16 x 6 5/16")
Weight (each)6.2 kg (13 lb 10 oz)
