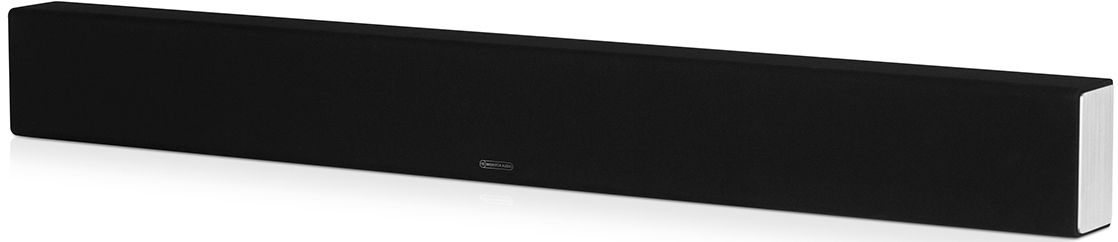

Monitor Audio SB-3 Passive Sound Bar

Model #: SB3

At a Glance

The SB-3 is custom-built for screen sizes above 60 inch and features three separate driver arrays for left, centre, right channels in a single cabinet.

WarningProposition 65 Warning for California Residents
Monitor Audio SB-3 Passive Sound Bar

General Specs

Frequency Response80 Hz - 30 kHz
Manufacturer WarrantyLimited Lifetime
CollectionSB-3
RMS Power Handling (Watts)100
Impedance8 ohms
Maximum Power Handling (Watts)100
Speaker TypeSound Bars

Additional Specifications

Frequency Response (-3 dB)All Channels: 80 Hz – 30 kHz
Sensitivity (1W@1M)Left and Right Channels: 84 dB , Centre Channel: 87 dB
Nominal Impedance8 ohms
Power Handling (RMS)Left and Right Channels: 40 W, Centre Channel: 80 W
System Power Handling (RMS)All Channels: 100 (High pass filter set to 100 Hz)
Recommended Amplifier RequirementsAll Channels: 30 — 100 W
Crossover FrequencyAll Channels: 80 — 120 Hz
Maximum SPL104 (108.8 all channels driven) dBa
Bass AlignmentLeft and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading. Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement Left and Right Channels2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Drive Unit Complement Centre Channel2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)147 x 1307 x 93 mm (5 13/16 x 5 17/16 x 3 11/16")
External Dimensions (Including Bracket (H x W x D))145 x 1307 x 100 mm (5 11/16 x 5 17/16 x 3 15/16")
BracketBSB
Weight9.1 kg (20 lb)

Monitor Audio SB-3 Passive Sound Bar

Model #: SB3
471276
Model #: SB3
Monitor Audio
$99,999.00

Call for Best Price

At a Glance

The SB-3 is custom-built for screen sizes above 60 inch and features three separate driver arrays for left, centre, right channels in a single cabinet.

Related items:

Get to know this product.

Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.

Technology

Individual C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel

C-CAM gold dome tweeters per channel

Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel

Three separate driver arrays for left, centre, right channels in a single cabinet

Optional dedicated wall bracket

Integrated Silicon feet provide a secure cabinet-top mounting alternative.

Specifications

General Specs

Frequency Response80 Hz - 30 kHz
Manufacturer WarrantyLimited Lifetime
CollectionSB-3
RMS Power Handling (Watts)100
Impedance8 ohms
Maximum Power Handling (Watts)100
Speaker TypeSound Bars

Additional Specifications

Frequency Response (-3 dB)All Channels: 80 Hz – 30 kHz
Sensitivity (1W@1M)Left and Right Channels: 84 dB , Centre Channel: 87 dB
Nominal Impedance8 ohms
Power Handling (RMS)Left and Right Channels: 40 W, Centre Channel: 80 W
System Power Handling (RMS)All Channels: 100 (High pass filter set to 100 Hz)
Recommended Amplifier RequirementsAll Channels: 30 — 100 W
Crossover FrequencyAll Channels: 80 — 120 Hz
Maximum SPL104 (108.8 all channels driven) dBa
Bass AlignmentLeft and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading. Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement Left and Right Channels2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Drive Unit Complement Centre Channel2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)147 x 1307 x 93 mm (5 13/16 x 5 17/16 x 3 11/16")
External Dimensions (Including Bracket (H x W x D))145 x 1307 x 100 mm (5 11/16 x 5 17/16 x 3 15/16")
BracketBSB
Weight9.1 kg (20 lb)
