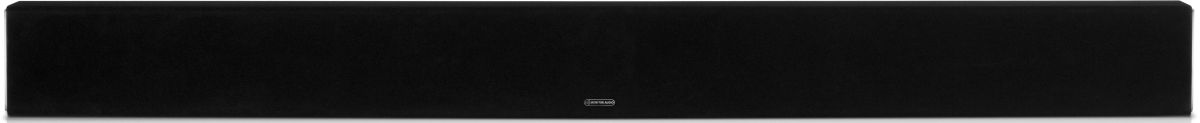

Monitor Audio SB-4 Passive Sound Bar

Model #: SB4

At a Glance

The SB-4 passive soundbar is designed to provide a visually balanced, audio solution for 70 inch screens and larger, this stylish, high performance, passive soundbar is ideal for installers keen to deliver premium performance in media room applications.

WarningProposition 65 Warning for California Residents
Monitor Audio SB-4 Passive Sound Bar

General Specs

Frequency Response70 Hz - 30 kHz
Manufacturer WarrantyLimited Lifetime
CollectionSB-4
RMS Power Handling (Watts)100
Impedance8 ohms
Maximum Power Handling (Watts)100
Sensitivity87 dB
Speaker TypeSound Bars

Additional Specifications

Frequency Response (-3 dB)70 Hz – 30 kHz
Sensitivity (1W@1M)87 dB
Nominal Impedance8 ohms
Power Handling (RMS)80 W
System Power Handling (RMS)100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements30 – 100 Watt
Crossover Frequency80 — 120 Hz
Maximum SPL104 (108.8 all channels driven)
Bass AlignmentLeft and Right Channels: 1 x Auxiliary Bass Reflex (ABR) Loading. Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit ComplementAll Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)147 x 1562 x 92 mm (5 13/16 x 6 11/2 x 3 5/8")
External Dimensions (Including Bracket (H x W x D))145 x 1562 x 100 mm (53/4 x 611/2 x 315/16")
BracketBSB
Weight12 kg (26 lb 7 oz)

Monitor Audio SB-4 Passive Sound Bar

Model #: SB4
471219
Model #: SB4
Monitor Audio
$99,999.00

Call for Best Price

At a Glance

The SB-4 passive soundbar is designed to provide a visually balanced, audio solution for 70 inch screens and larger, this stylish, high performance, passive soundbar is ideal for installers keen to deliver premium performance in media room applications.

Related items:

Get to know this product.

The SB-4 incorporates a series of clever technical features and design innovations which demonstrate Monitor Audio’s revered attention to detail and commitment to quality.

Ease of installation is another key advantage of the SB-4. High quality, low profile binding posts provide an easy and trouble free connection, with the terminals recessed neatly to enable a flush to wall installation. The terminal panel also houses standard fixing points compatible with SANUS TV mounts, with many options for TV and wall installation. Wall mounting is also possible using Monitor Audio’s low-profile wall mount bracket with cable access, easy pre-alignment and fixing template.

The SB-4 is designed to be used with a partnering sub-woofer and crossed over to provide the best possible experience and increased system power handling. Alternatively, the soundbar can be used independently to deliver an impressive uplift in TV audio performance with only a slightly reduced power handling.

Technology

All MDF construction. Internally braced for additional rigidity

Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet

Wrap around acoustically open, black cloth finish with solid brushed Silver aluminium end trims – provides stealthy appearance for perfect placement near a TV

Neat terminal panel with high quality, low profile gold plated binding post terminals

High quality crossovers utilising polypropylene capacitors and low loss laminated steel core inductors

Designed to fit SANUS TV mounting systems

Optional sturdy wall bracket with cable hole access and template installation

Low profile Silicon rubber feet integrated for secure cabinet top placement

Specifications

General Specs

Frequency Response70 Hz - 30 kHz
Manufacturer WarrantyLimited Lifetime
CollectionSB-4
RMS Power Handling (Watts)100
Impedance8 ohms
Maximum Power Handling (Watts)100
Sensitivity87 dB
Speaker TypeSound Bars

Additional Specifications

Frequency Response (-3 dB)70 Hz – 30 kHz
Sensitivity (1W@1M)87 dB
Nominal Impedance8 ohms
Power Handling (RMS)80 W
System Power Handling (RMS)100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements30 – 100 Watt
Crossover Frequency80 — 120 Hz
Maximum SPL104 (108.8 all channels driven)
Bass AlignmentLeft and Right Channels: 1 x Auxiliary Bass Reflex (ABR) Loading. Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit ComplementAll Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)147 x 1562 x 92 mm (5 13/16 x 6 11/2 x 3 5/8")
External Dimensions (Including Bracket (H x W x D))145 x 1562 x 100 mm (53/4 x 611/2 x 315/16")
BracketBSB
Weight12 kg (26 lb 7 oz)
