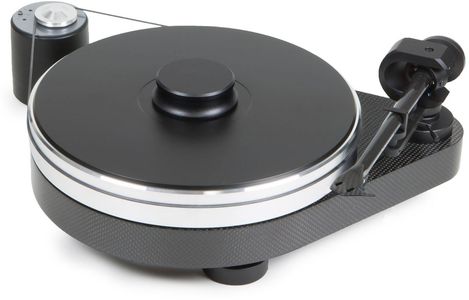

Product Overview
The massive outboard motor unit is equipped with precise motor control and features a built-in switch for easy switching between 33 & 45rpm. Last but not least, the no-compromise 9cc Evolution tonearm with conical carbon-fiber armtube and inverted bearing ensures perfect tracking even with demanding cartridges.
Inside the Plinth
RPM 9 & 10 Carbon, Xtension 9, 10 & 12 Evolution, and Signature 10 & 12 use plinths that are more than meets the eye. These high-end turntables not only use multi-density fiber (MDF, which absorbs resonance), but inside the plinths are also “central gravity points” filled will steel pellets. Drawing harmful resonance to the central gravity point all but eliminates the potential for plinth and bearing noise to reach the tonearm and cartridge. Pellets are used as opposed to a solid alloy due to their dispersion effect where a solid alloy may resonate. This design heightens the overall mass of these turntables as well, a well-known approach to optimizing sonics.
True Balanced – Get Blown Away
Set apart from the competition, all Pro-Ject turntables are configured for balanced operation. Switching to balanced is no subtle upgrade and promises to redefine ‘reference’ sound quality in your turntable system. What’s needed to get there are a) a moving coil cartridge, b) a turntable with balanced phono outputs, c) a phono preamp with balanced phono inputs and d) a balanced cable carrying the phono signal from turntable to phono preamp. Typically a much more costly endeavor, Pro-Ject has changed that landscape by offering products that make the technology attainable to any serious listener.
RPM 9 Carbon comes equipped with a balanced 5-pin DIN phono output and can be run balanced with either DIN > XLR or DIN > mini XLR phono cables and a balanced phono stage. The turntable ships with a DIN > RCA phono cable for maximum compatibility out of the box (unbalanced dual single-ended RCA/ground is by far the most common connection type in phono).
Tonearm Upgrades for Your RPM 9 Carbon Turntable
The RPM 9 Carbon turntable ships with the adept EVO 9 CC tonearm with ABEC 7 quality bearings & a one-piece carbon fiber armtube. The EVO 9 CA Premium tonearm is available as a drop-in upgrade (no soldering needed). It features a one-piece carbon/aluminum armtube, high-purity silver tonearm wire, an upgraded bearing assembly using stainless steel and an improved TPE-damped counterweight on a threaded stub. Explore even greater versatility with the EVO AS and EVO AS Premium tonearms. These are curved options with replaceable headshells- especially good for phono cartridge collectors. The EVO AS Premium receives the same upgrades as the EVO CA Premium mentioned above.
Additional Features
Carbon-wrapped MDF plinth mass-loaded with steel pellets
Plinth manufactured with thermo treatment
Plinth suspended on opposing magnets in isolation feet
Inverted main bearing with ceramic ball/plate
Acoustically inert 7.2kg aluminum platter
TPE-damped platter with integrated vinyl record mat
DC power supply w/ AC motor
DC-driven AC generator (“Speed Box” technology)
33/45rpm electronic speed control
Outboard motor with massive aluminum base
Pre-mounted EVO 9 CC carbon fiber tonearm
5-pin DIN balanced output
DIN > RCA cable included (balanced DIN > XLR available separately
Handmade in Europe
