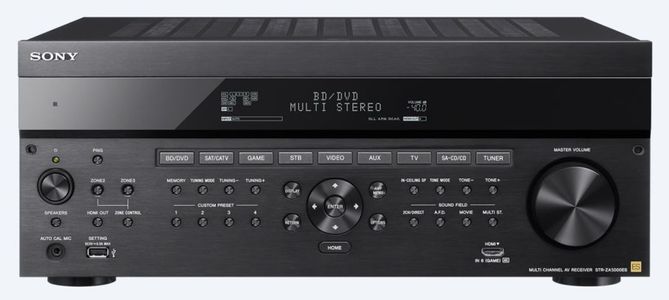

USB Front Input
Using the front mounted USB, you can easily apply system updates and during setup, save all receiver settings to a flash drive for backing up and porting over to another unit to replicate settings
Web Browser Configurable
View, program and edit receiver settings via your Web Browser, computer, smartphone, or tablet. Enter the following into your web browser*: “http://[receiver’s ip-address]/”. * — Most modern web browsers are supported.
Full HDMI® Color Gamut Support
With x.v.Color™ and Deep Color technology capability, you can rest assured that all HDMI® connected video sources will look their best, displaying nearly twice (1.8x) as many viewable colors as the existing RGB color standard.
In-Ceiling Speaker Mode
Developed especially for use with in-ceiling speakers and easily configured during setup, In-Ceiling Speaker Mode virtually relocates the Front and Center in-ceiling speaker sound images to better coincide with the screen. Dialog and music will sound as if coming from the screen instead of the ceiling.
Seamless IP Integration
With help from your authorized ES dealer/installer the full power of an ES receiver can be easily integrated into expanded home automation including multi-zone audio, lighting and shades, security, appliances and almost anything else you can imagine. Control4® Certified and featuring AMX Beacon Savant, URC, RTI, Elan and Vantage support. The STR-ZA5000ES also features 12-volt triggers, RS232 and IR, for added installation flexibility
Certifications
Connections
HDMI Inputs: | 6 |
Ethernet Port: | Yes |
USB Port: | 1 |
Component Video Inputs: | 3 |
Composite Video Inputs: | 2 |
Analog Audio(RCA) Input: | 4 |
Coaxial Digital Audio Inputs: | 1 |
Composite Video Outputs: | 2 |
HDMI Outputs: | 2 |
Optical Digital(Fiber Optic) Audio Inputs: | 2 |
S-Video Inputs: | 2 |
S-Video Outputs: | 2 |
Analog Audio(RCA) Output: | 2 |
Features
Internet Connectable: | Yes |
On Screen Display: | Yes |
Tuning Presets: | Yes |
AM/FM Tuner Built-In: | Yes |
Specifications
Screen Resolution: | 1080p |
Power Off Consumption (watts): | 0.3 |
Digital Tuner: | Yes |
Total Receiver Power: | 500 |
Misc. Specs
Product Weight (lbs.) | 37.70 |
Depth (in.) | 16.14 |
Width (in.) | 16.93 |
Height (in.) | 6.85 |
Channels | 9.2 |
