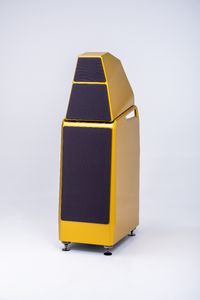

Wilson Audio Sasha V - Time Coherent Multi-Way Full Range Speaker System

Product Overview

Sasha V Upgrades & Differences

The upper module two-position front spike track offers additional adjustment positions the Sasha DAW doesn't have, resulting in more precise time alignment accuracy and more adaptability to a wider variety of listening positions.

Material DNA

Sasha V has strategically nested V-Material in the critical interface between the upper module and the top of the woofer cabinet. Novel in its properties, this material provides uncommon vibration control and upper module isolation, similar to the design philosophy found in the prestigious Alexx V and Alexia V.

AudioCap Copper Capacitors

An all-new copper version of the AudioCapX-WA capacitor has been recently developed, raising the bar for high-frequency micro detail, and makes its debut in the Sasha V. The AudioCapX-WA capacitors, along with fine-tuning the Sasha V's crossover topology, have contributed to a new standard of low-level resolution in a playback system.

Premium Ingredients

The Sasha V also features a vast range of hardware upgrades, including the bespoke Wilson Audio multi-connector binding posts with modified knurling for a cleaner signal path. Installation choices are wider with the choice of either spade or banana plug speaker cables. Made from the purest conducive metallurgies, Wilson Audio multi-connector binding posts ensure robust connection stability and are audibly more refined than plastic binding posts commonly found on loudspeakers.

Leveling & Alignment

Looking at the back of the woofer top plate you see a flush mounted bubble level which gives a quick and reliable leveling system for better installation. All external umbilical cables are terminated with the Wilson Audio spade as found on the Chronosonic XVX, Alexx V, and Alexia V. The streamlined stylized staircase alignment block makes the installation process and time alignment adjustments much easier.

CSC Tweeter

When Wilson Audio introduced its cutting-edge rear-wave chamber in the Convergent Synergy Carbon (CSC) Tweeter, initially in Alexx V, the CSC allowed for an extended high-frequency range, remarkably smooth linearity, and superior high-frequency harmonic expression. Cohesively integrating this CSC tweeter with the midrange and woofers has resulted in an impressive improvement to Sasha V's overall sound quality. This unique and complex carbon fiber rear-wave chamber is constructed entirely in-house on one of our many dedicated 3D printers.

Alnico QuadraMag

Perfect blending between the tweeter and midrange is a fundamental element to accurate and realistic sound reproduction. The R&D team successfully did just that. Wilson Audio's beloved 7-inch AlNiCo (Aluminum - Nickel - Cobalt) QuadraMag midrange driver sings harmoniously with the CSC tweeter in Sasha V.

Crossover

Sasha V's crossovers are composed of world-class components and are passionately hand-made at Wilson Audio. Printed circuit boards, when used in loudspeakers, inherently dynamically compress the sound. Wilson Audio avoids this sonic issue by taking the time to painstakingly handcraft and join each component with point-to-point connections.

Wilson Audio Acoustic Diodes

Included with Sasha V is a complete set of Wilson Audio Acoustic Diodes. An all-new spike system launched with Alexx V, which has been completely upgraded from our standard spike system, and features a novel combination of austenitic stainless steel and V-Material. This coupling system was created by Wilson Audio's Special Applications Engineering (WASAE) division and has superlative vibration management that reveals far greater dynamic nuances across the entire frequency spectrum.

Specifications

Drivers: Woofers Two - 8 inches (20.32 cm) Midrange One - 7 inches (17.78 cm) Tweeter One - 1 inch (2.54 cm)

Enclosures & Materials Enclosure Type Woofer Rear Ported Enclosure Type Midrange/Tweeter Rear Vented

Measurements Sensitivity 88 dB @ 1 Watt @ 1 Meter @ 1 kHz Nominal Impedance 4 ohms / minimum 2.36 ohms @ 82 Hz Minimum Amplifier Power 25 Watts per channel Frequency Response 20 Hz – 32 kHz +/- 3 dB Room Average Response [RAR]

Dimensions Height 45 1/16 inches (114.48 cm) w/o spikes Width 14 1/2 inches (36.83 cm) Depth 23 15/16 inches (60.78 cm) System Weight Per Channel (uncrated) 245 lbs (111.13 kg) Total System Shipping Weight (approx.) 760 lbs (344.73 kg)
