Product Overview

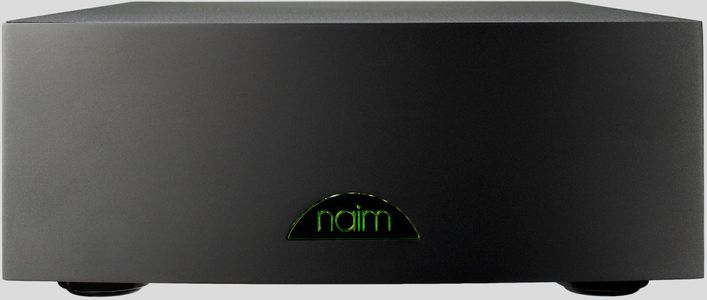

The SuperLine is a high performance moving-coil phono stage built in the Naim Audio aluminum reference enclosure with an anodized front panel. It brings all Naim Audio's latest analogue electronic design and environmental isolation techniques to bear on the most delicate analog element of any hi-fi system - the moving-coil phono signal. The SuperLine requires an external power supply - either the power supply output of an appropriate Naim Audio preamplifier or the SUPERNAIT and NAIT XS integrated amplifiers, or, for optimum performance, a dedicated FlatCap XS, HiCap or SuperCap.
SuperLine brings out all that's best in vinyl replay - timing, pitch accuracy, clarity, detail, and the unmistakable naturalness that records can deliver in abundance.
Features
RCA and BNC inputs
Moving coil only, with cartridge impedance matching adjustment (20 different load combinations possible)
Suspension system for delicate electronics as used in 500 Series
24V supply voltage from NaimUniti 2, NAIT XS 2, SUPERNAIT 2, Hi-Cap-DR, Nait XS-3 & Supernait 3, Naim Audio preamplifier (except NAC-N 172 XS), FlatCap XS, HiCap or SuperCap required
Bead-blasted, black anodized front panel
Technology And Craft
The heart of the SuperLine is a new, two-stage single-ended Class A discrete amplifier with part-passive RIAA filtering that runs off 25 internally regulated power supplies and features the transistor "quiet room" thermal isolation technique originally developed for the NAP 500 power amplifier. Environmental isolation is also ensured by the SuperLine's massive sub-chassis and high-Q spring suspension system - used here for the first time on a phono amplifier.
Duplicate phono and BNC sockets provide input versatility, and cartridge impedance matching adjustment is provided by four resistive and three capacitive load plugs. In combination with the SuperLine's internal input load, twenty different standard load combinations are possible.
